Control Unit

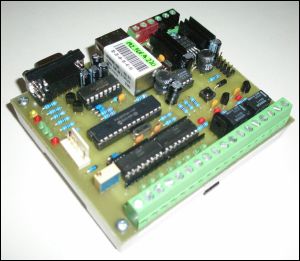

HERMES Control Unit is a board which could be standalone or expanded by other Units. It has 8 digital inputs, 1 analog input (0-5V/0-1023), 1 output with open colector and 2 output relais. It could be connected to netword like an remote serial device, using ethernet port or connected to computer using RS232 port.
Control Unit is distributed with Remote QTH software. The software is able to serve inputs and outputs on the Control Unit ant up to 8 Relay expanders connected to the Control Unit.
However, this unit is universaly designed to be programed by firmaware as unit usable in wide spectrum of possible applications.
 | Parameters
| Power input: | 12 VDC |
| Power consumption: | min: 60mA, max: by the count of connected units on bus |
Inputs:
| 1 analog
8 digital |
Outputs:
| 1 open colector
2 relais |
Relais load
:
| maximaly
1.0A / 30 VDC
0.5A / 125VAC
0.3A / 60 VDC
|
Ports:
| 1 RS-232
1 LAN |
| Bus power: | 12V/3A, 5V/1A |
| Dimensions: | 108 x 90 x 30 mm (whd) | | Montage: | DIN rail |
NOT AVAILABLE |
| Price: on call | |
|
| Price displayed net of VAT. | |
